General Product Structure Rule Maintenance

Product Configuration > Product Configuration Rules > General Product Structure Rule Maintenance

Use General Product Structure Rule Maintenance to define general selection rules for selecting components into variant product structures that are not specific to configurable items. In this way, some components defined in the rule can always be selected.

Exercise 21: General Product Structure Rule Maintenance

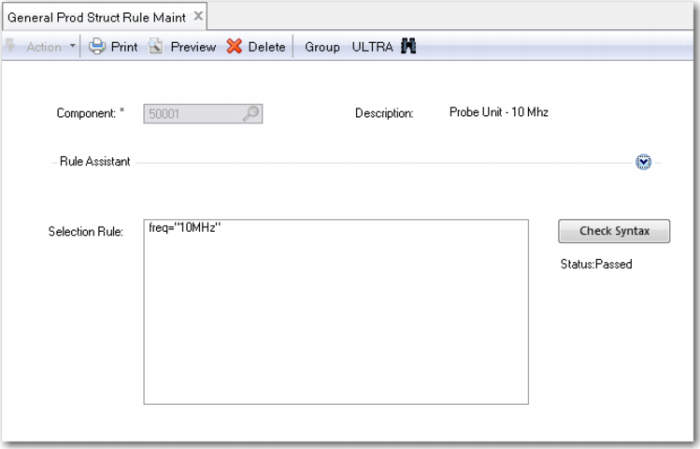

• Run General Product Structure Rule Maintenance and enter the following selection rules. Component 50001 is selected whenever the frequency is 10MHz.

• Component 50002 is selected whenever the frequency is 500kHz.

• Component 60050 is selected whenever a standard CPU is required.

• Component 60052 is selected whenever a high performance CPU is required.


Component	Description	Selection Rule
50001	Probe Unit - 10MHz	Freq = “10MHz”
50002	Probe Unit - 500kHz	Freq = “500kHz”
60050	Base Unit / CPU	CPU = “Standard”
60052	High Performance CPU	CPU = “High”

Note: You can use Rule Assistant to enter the selection rule.
