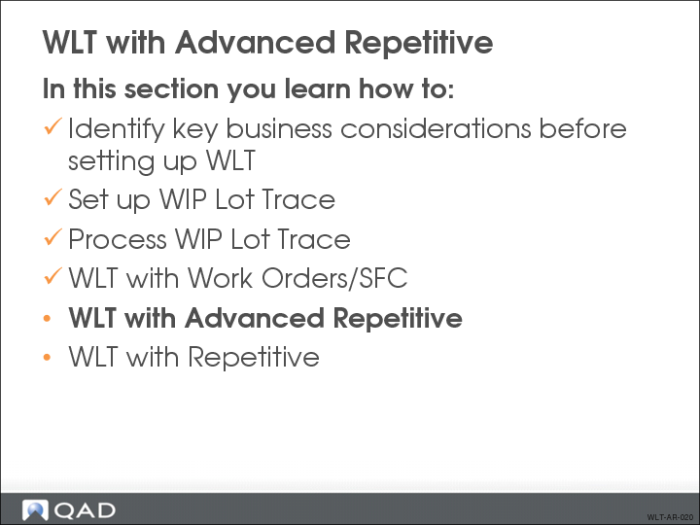

WLT with Advanced Repetitive

Course Overview

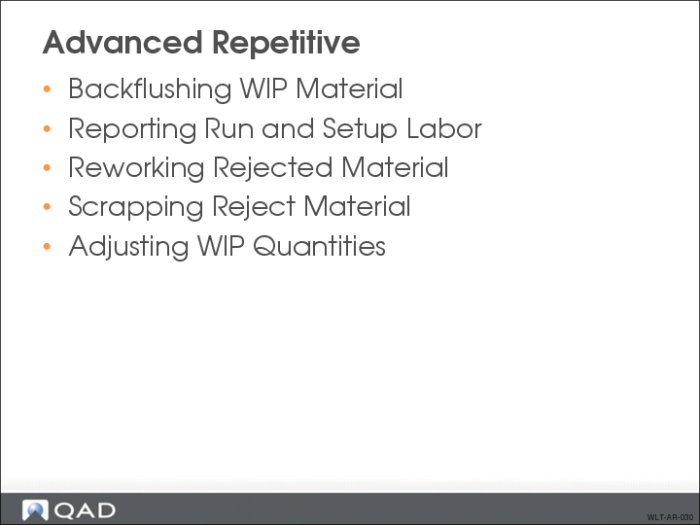

Advanced Repetitive

When processing a cumulative order in the Advanced Repetitive module, the system uses WLT data collection frames to collect tracing information when the cumulative order is WLT-controlled.

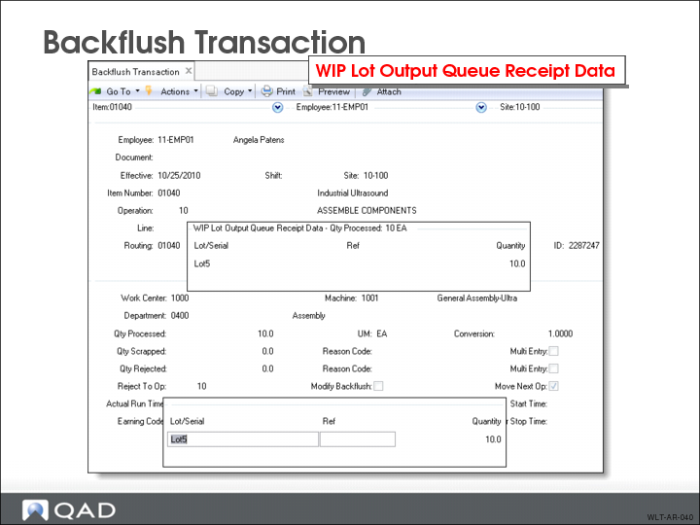

Backflush Transaction

Use Backflush Transaction to report production activity at advanced repetitive manufacturing operations. When WLT is active, the following WLT data collection frames display:

• Destination Work Center and Machine

• Appears only if Move Next Op is set to Yes

• WIP Lot Input Queue Issue Data

• WIP Lot Output Queue Receipt Data

• WIP Lot Scrap Data

• Appears only if you enter a value in the Qty Scrapped field

• WIP Lot Reject Data

• Appears only if you enter a value in the Qty Rejected field

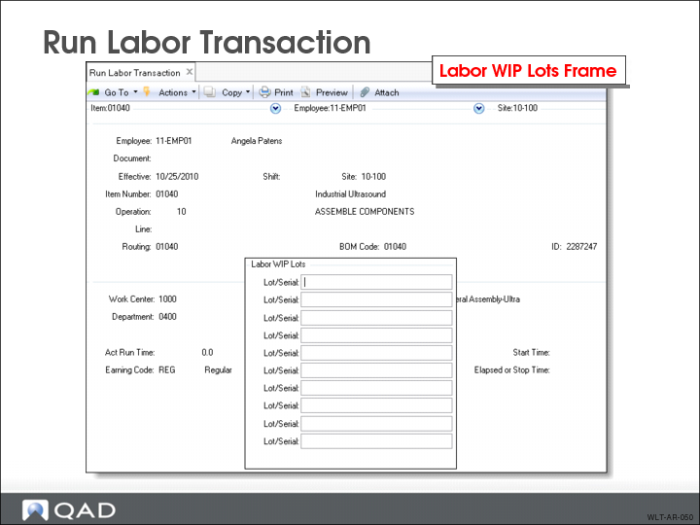

Run Labor Transaction

Use Run Labor Transaction to report labor performed for WLT controlled lot/serial numbers. You do this using the WLT data collection frame:

• Labor WIP Lots

Note: Setup Labor Transaction (18.22.15) works similarly.

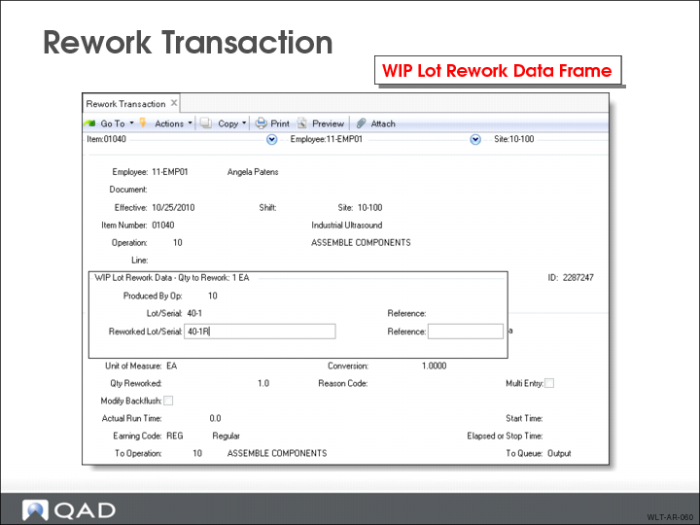

Rework Transaction

Use Rework Transaction to move previously rejected WLT-controlled material back into production. The following WLT data collection frames display:

• Destination Work Center and Machine

• WIP Lot Rework Data

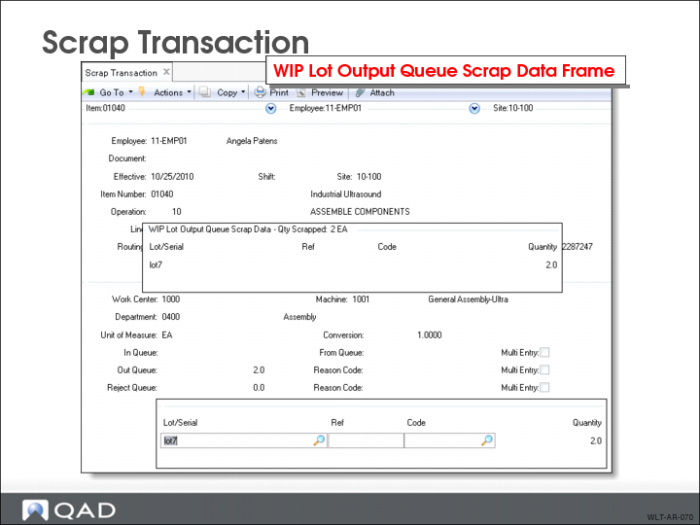

Scrap Transaction

Use Scrap Transaction to scrap or remove WIP quantities from any queue of an operation without backflushing. Depending on which queue you are scrapping material from, one or more of the following WLT data collection frames appear:

• WIP Lot Input Queue Scrap Data

• Enter a value in the In Queue field

• WIP Lot Output Queue Scrap Data

• Enter a value in the Out Queue field

• WIP Lot Reject Queue Scrap Data

• Enter a value in the Reject Queue field

The system reduces the WIP QOH at each queue by the quantity scrapped at the indicated work center and machine (specified in the second frame). It also adds the quantity scrapped to the cumulative scrapped quantity for the specified lot/serials.

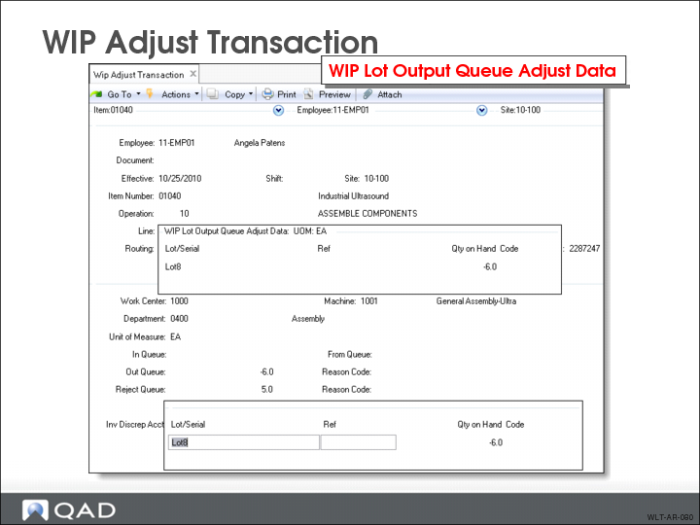

WIP Adjust Transaction

Use WIP Adjust Transaction to adjust quantities at an operation’s input, output, and reject queues. The following WLT data collection frames display:

• WIP Lot Input Queue Adjust Data

• WIP Lot Output Queue Adjust Data

• WIP Lot Reject Queue Adjust Data

Note: When using WLT, the In Queue, Out Queue, and Reject Queue fields are not available. Enter the WLT data collection frames to enter adjustments to QOH balances for the WIP lot/serials in each queue.
