Example - Map the Internal Routings -Answer

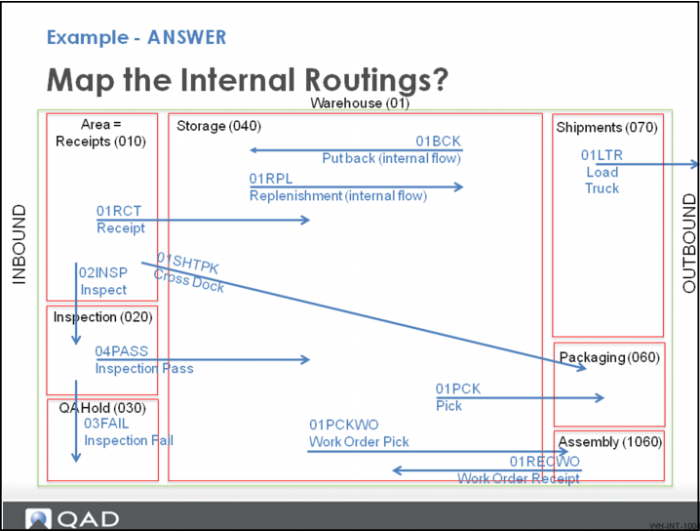

The lines in blue depict the internal routings mapped to the various areas.
Any product that moves from one area to another within a warehouse has to have the flow defined.
In QMI there are seven defined product flows:

Routing
Path
Purpose
01RCT
From Receiving to Storage
General receipts
01BCK
Forward Pick zone to Reserve Storage zone
Return replenishments
01RPL
Reserve Storage to Forward Pick
Replenishment
01PCK
Storage to Packaging
General pick
01PCKWO
Storage to Assembly
Work Order pick
01RECWO
Assembly to Storage
Assembly receipt
01LTR
Shipping to out of the system
Shipping
