RDT Quality Inspection
The Radio Data Terminal (RDT) or Radio Frequency (RF) Quality Inspection frame (rf.5.1) lets you maintain and enter sample details during inspection.
The user must enter a valid sample ID. This can be done using the RDT/RF integrated keyboard or alternatively if a barcode scanner is attached and barcodes are being printed on the inspection tags, the user can scan the inspection tag corresponding to the sample, and the relevant information is entered automatically in the appropriate fields.

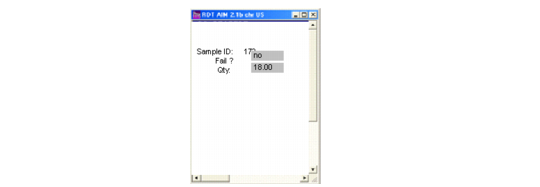

RDT and RF Quality Inspection
The RDT screen works the same way as Sample Inspection Maintenance (4.19.1), but the screen is simplified.
The user is requested to enter the sample ID, reading the inspection tag, (scanning it if a barcode is printed on it).
The Fail field and the Returned Quantity field function in a similar manner to the non-RDT frames:
Fail
The Fail field is the result of the sample quality inspection. Depending upon the value of this field, the sample inventory and the corresponding parent inventory statuses are changed accordingly.
Example: If the Fail field is set to Yes, the sample inventory and the corresponding parent inventory status is FAILED, irrespective of location.
The new inventory status comes from Inspection Status Change Maintenance (4.19.13).
Qty
This value is the remaining sample quantity after inspection has taken place. This is the quantity of inventory that is returned to the parent pallet.
Example: 10 EA is taken from the parent pallet as a sample. 2 EA of 10 EA have been destroyed during quality inspection. Therefore, a quantity of 8 EA is returned to the original parent pallet.
This field can be modified only if the Quality/Inspection Control settings permit.
