Setting Up Number Ranges
Create sequences and define sequence parameters for notas fiscais using Number Range Maintenance (36.2.21.1). NRM uses a unique sequence ID to retrieve data and generate new numbers for legal documents.
Specify lgd_nbr and a variable attribute as the target dataset for legal documents.
Example: lgd_nbr.site1
For information on setting up NRM sequences, see User Guide: QAD System Administration.
For electronic notas fiscais, you must create at least one number range in Number Range Maintenance.

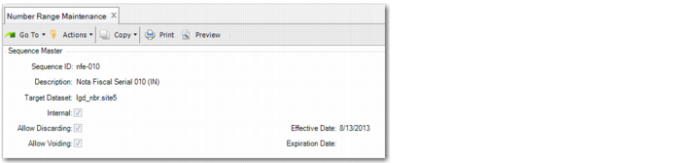

Number Range Maintenance
Target Dataset
Use lgd_nbr plus a variable as the target dataset.
Internal
Choose Yes.

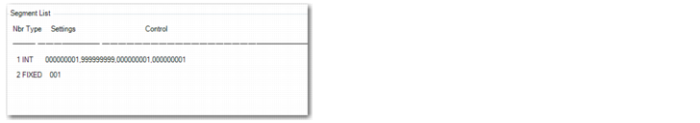

Number Range Maintenance, Segment List Frame
Sequence 1, INT
Specify nine digits using the format 999999999. The sequence is used to assign the nota fiscal number, and represents the first nine digits displayed in the Legal Document fields in QAD EE. The sequence number is incremented by one for each new nota fiscal number assigned.
Sequence 2, FIXED
Specify three digits for the serial number, which is the code displayed after the electronic nota fiscal number.
