Agent, Receiver, and Sender Statuses

Licensing > Agent, Receiver, and Sender Statuses

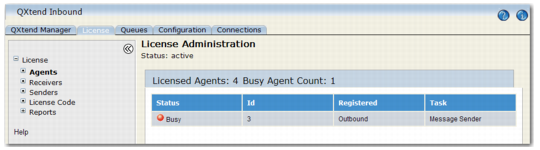

Licensed Agents

The Licensed Agents window tracks and displays the number of licensed agents, as defined in the license code. It also displays the number of agents that are currently used in processing, and the task assigned.

Licensed Agents

Status

Displays the status of the agent. For example, Busy or Idle.

Displays the process ID of the agent.

Registered

Indicates where the agent is registered, QXI or QXO.

Task

If processing a message through QXI, the name of the QDoc currently being processed is displayed. If the agent is assigned to QXO, the task is the Message Sender, which indicates that the agent is currently occupied by a Message Sender service in QXO.
