Specify Telnet Server Settings
Use the following instructions to configure telnet server settings:
1 In QAD Standard Edition, access User Option Telnet Maintenance (36.20.10.3).
2 In the User ID field, enter * to specify a generic record and press Go.

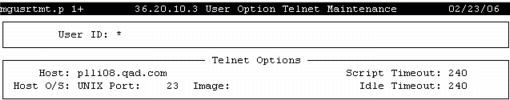

User Option Telnet Maintenance, Telnet Options
3 Use the following descriptions to complete the Telnet Options fields in User Option Telnet Maintenance.
Host
Enter the fully qualified machine name or IP address of the telnet server. The script uses this information to establish the telnet connection.
Host O/S
Enter UNIX for UNIX systems. Enter NT for Windows systems.
Port
Enter the port number for the telnet server. The default value is 23. This is the value you would normally use, unless you are using SSH under the .NET UI. In this case, the port value is 22. See
Set Up SSH for QAD .NET UI.
Leave this field blank; images do not apply to the QAD user interfaces.
Script Timeout
Enter the number of seconds (1-999) the system will wait for the telnet log-in script to execute. If this value is exceeded, a time-out message displays and the session closes.
Idle Timeout
Enter the number of seconds (1-999) the system will wait after a telnet session begins for an MFG/PRO program to execute.
Note: Idle timeout is not used in the QAD .NET UI.
4 Press Go to continue.
