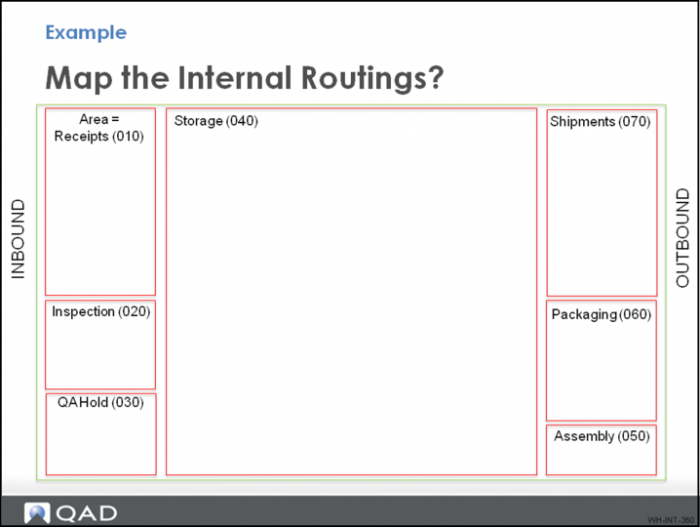

Example - Map the Internal Routings
Before you configure QAD Warehousing, it is helpful to define the product flows. You do this by mapping the internal routings.
Use the QMI layout above to map internal routings for areas between the inbound and outbound flow of goods.

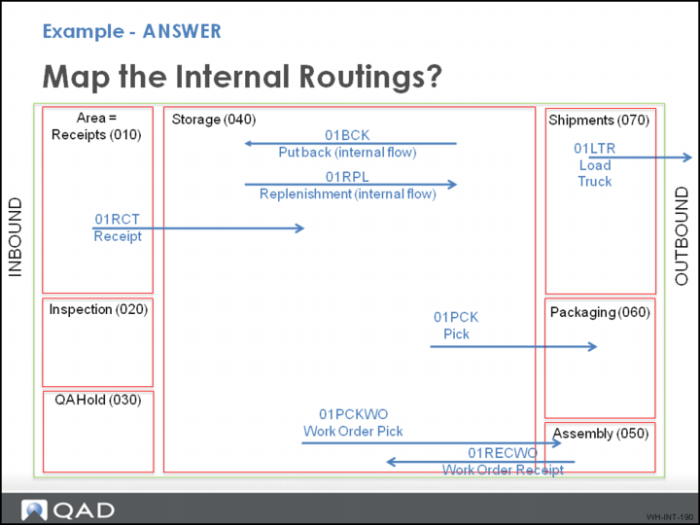

Example - Answer to Mapping Internal Routings
The lines in blue depict the internal routings mapped to the various areas.
Any product that moves from one area to another within a warehouse has to have the flow defined.
In QMI there are seven defined product flows:
Routing | Path | Purpose |
01RCT | From Receiving to Storage | General receipts |
01BCK | Forward Pick zone to Reserve Storage zone | Return replenishments |
01RPL | Reserve Storage to Forward Pick | Replenishment |
01PCK | Storage to Packaging | General pick |
01PCKWO | Storage to Assembly | Work Order pick |
01RECWO | Assembly to Storage | Assembly receipt |
01LTR | Shipping to out of the system | Shipping |
