Exercise - Set Up Locations
Use Warehouse Location Maintenance to set up locations for a warehouse.
Use the following to help set up locations.
1 Use Warehouse Location Maintenance to set up locations.
2 Set up parameters, then note the parameters you enter here:
W
Site | Location | Description (optional) | SLG | WLG | UM (A) | Qty (A) | H (A) | L (A) | W (A) |
10-301 | | Receive | | | -- | -- | -- | -- | -- |
10-301 | | Pallet | | | PL | -- | 2 | 2 | 1 |
10-301 | | Each | | | EA | 100 | -- | -- | -- |
10-301 | | Ship | | | -- | -- | -- | -- | -- |

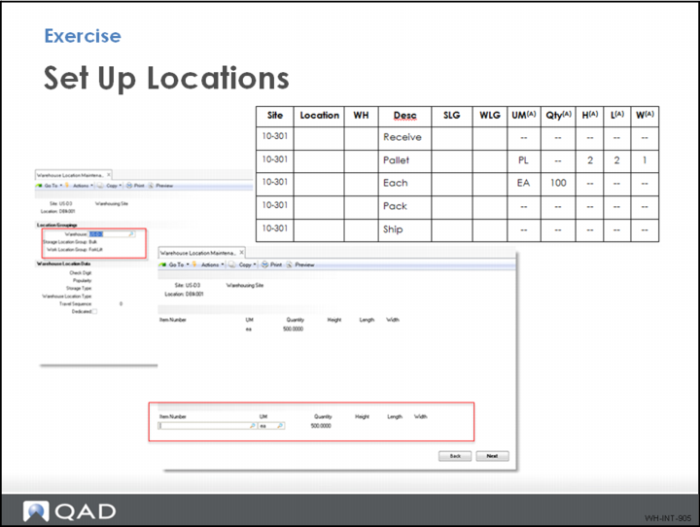

Note: (A) These fields are in the final frame in the program, as shown in the graphic above.

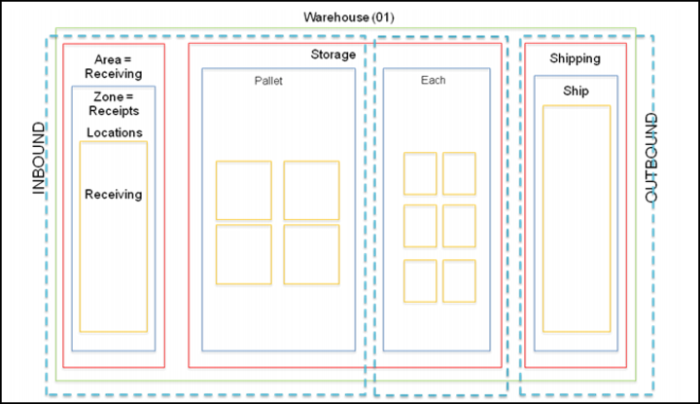

Warehouse Locations Map
