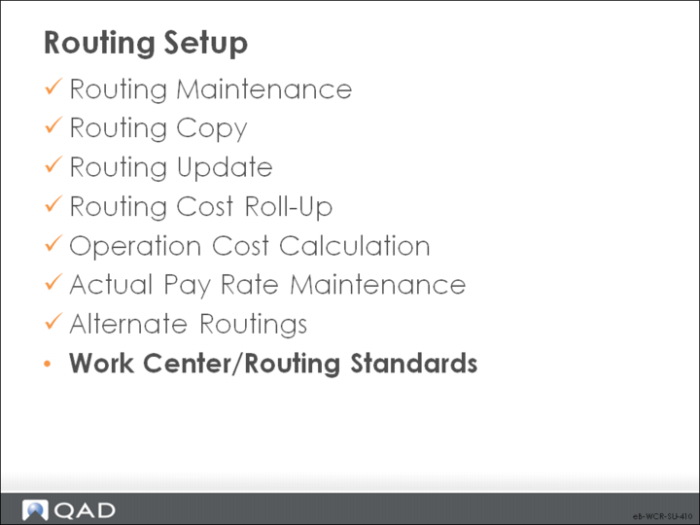

Work Center/Routing Standards

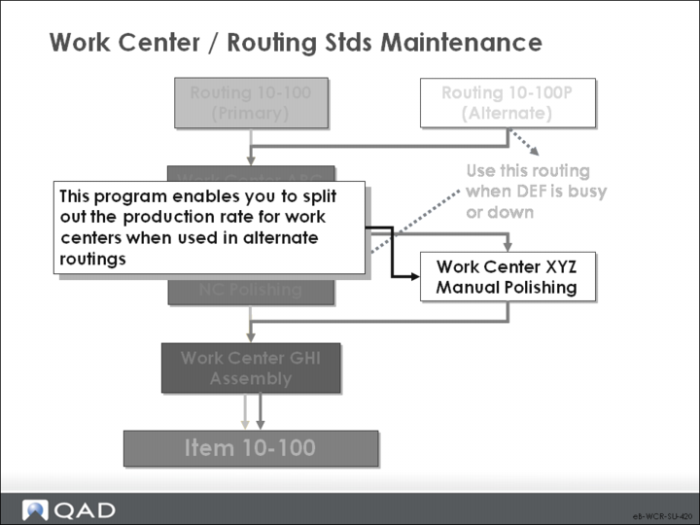

Routings and process definitions identify the work center where each operation is normally performed, but the work can be done at several work centers.
Work Center/Routing Stds Maint enables you to establish different production rates for the various alternates and items manufactured in them.
This cross reference is used for repetitive module efficiency reports only

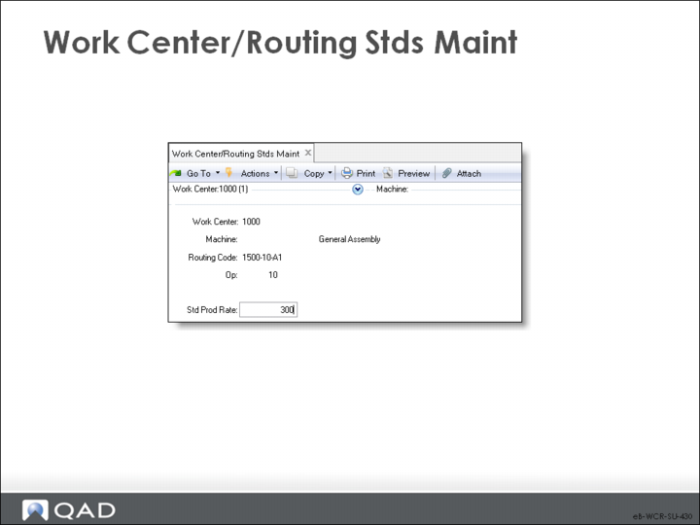

Work Center/Routing Stds Maint
Standard rates can be reviewed when determining which work center to use. Later, after production reporting, efficiency reports use the standard production rate defined for the work center where the work was done rather than the standard rate for the work center identified on the routing.
Note: Standard production rates are used only in Repetitive (18), not Shop Floor Control (17).
Work Center/Machine
The alternate work center and machine for this routing code and operation.
Routing Code
The routing code this standard run rate applies to.
Op
The operation number to which this standard run rate applies. A routing code and operation number uniquely identifies each operation step.
Std Prod Rate
The standard production rate for this routing operation when it is processed on this work center and machine. Production rate is expressed as the number of units per hour that can be processed (excluding setup time). The unit is the item/product unit of measure.
