Picking Details
The Over Pick and Control Over Pick at SLG fields are used in the same way as in Transaction Type Maintenance.

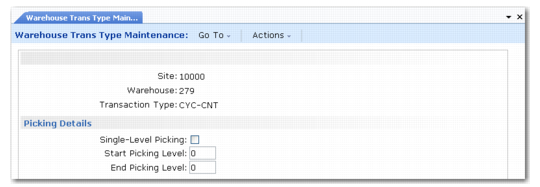

The Picking Details frame is shown in Warehouse Transaction Type Maintenance, Picking Details Screen.

Warehouse Transaction Type Maintenance, Picking Details Screen
The fields in this frame define the picking levels associated with this transaction type. Each storage location group has an associated picking level value. For any picking transaction type, you can define the picking levels at which picking should start and end. The system then looks in the relevant storage location groups that have the specified picking level.
Single Level Picking
Enter Yes if all the picking quantity must be taken from only one picking level; otherwise, enter No.
Start Picking Level
Enter the numerical code for the picking level at which picking is to start.
End Picking Level
Enter the numerical code for the picking level at which picking is to end.
