Testing a Barcode
Use EAN/UCC Barcode Testing (4.23.20) to test barcode results when you use barcode programs such as
whsscc.p or
whean128; see
EAN/UCC Barcode Testing (4.23.20). For example, when you use
whsscc.p, you can run a test to ensure that the system uses the eight characters before the last check-digit character at the end of the SSCC barcode.
Enter the barcode you want to test, the barcode program that reads and interprets the code, and the field prefix for the barcode. Click Next to see a sample of the barcode that staff can print from the RF in the Result field.

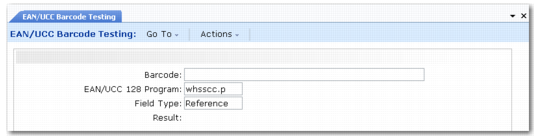

EAN/UCC Barcode Testing (4.23.20)
Barcode
Enter the barcode that you want to test.
EAN/UCC 128 Program
Enter the program that reads or interprets either SSCC or UCC/EAN-128 codes: whsscc.p or whean128.
Field Type
Enter the field type for which the program in EAN/UCC 128 Program attaches. See
Barcode Prefixes.
Result
The system displays extracted code in this read-only field. If you specify the flavour 1 print option and are testing SSCC code, the system displays the whsscc code only.
