Printers and Batch Processing > Defining Printer Types

Defining Printer Types
Before setting up printers, define printer types using Printer Type Maintenance (36.13.1).

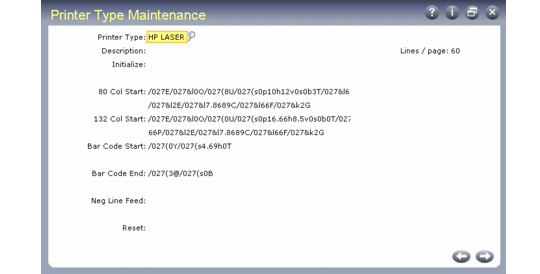

Printer Type Maintenance (36.13.1)
Printer Type
Select your printer type from the list of predefined types. If your printer type is not in the list, use a similar printer type or define a new one.
To define a new printer type, you specify a series of programming sequences to control printer characteristics and behavior in the following situations:
• 80-character-width print jobs
• 132-character-width print jobs
• Barcode print jobs
• Hardware initialize and reset
Using control characters, you define how your printer performs such tasks as modifying fonts, changing page orientations, producing multiple copies, and so forth. Your printer manual is the best resource for control code definitions.
Note: Without correct control codes, the related aspect of printer control will not work.
Use normal ASCII characters in the control fields. For nonprinting characters, also called control characters, use a slash and the three-digit ASCII number for the character. Control Characters lists characters frequently used in control sequences.

Control Characters

Control Character
ASCII
Backspace
/008
Tab
/009
Linefeed
/010
Form Feed
/012
Carriage Return
/013
Escape
/027
Default system data includes correct control sequences for some commonly used printers.
Note: One of the default printers is terminal. Use terminal in a character interface, window in a Windows interface, and page in QAD Desktop or .Net UI.

Sample Printer Control Codes

Code
Function
/X27E
Printer reset
/X27&l3A
Folio paper format
/X27&lXO
Portrait orientation
/X27&l1O
Landscape orientation
/X27&l1S
Long edge binding (prints on both sides)
/X27&l66F
Bottom margin is 66 lines from top
/X27(sXp16.67h8.5vXsXbXT
Pitch 16.67, height 8.5, default style, thickness, font
/X27&l7X89C
Adjusts vertical index in steps of 1/48 inch
/X27(sXp16.67hXs3b4X99T
Pitch 16.67, height default, bold, courier (4X99)
