Example of a change to the Model SQL
In the example used in
Creating a New Re-usable Transformation (on page
578), the SQL was:
TIMESTAMP_FORMAT(RTRIM(column ),'YYYYMMDD')

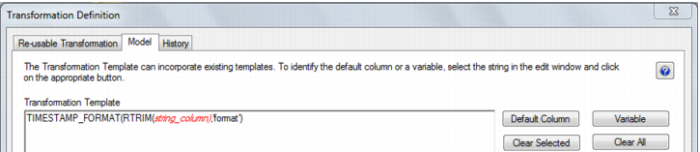

Change the SQL to allow the format to be specified when the transformation is used by changing YYYYMMDD to format.
Then highlight the word format and click on the Variable button. This makes the word format a variable than can be substituted when the Re-usable Transformation is used.

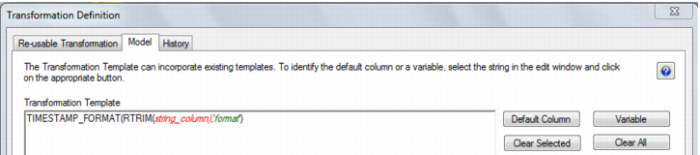

Now format is green and in italics:
Click on OK.
Applying Changes to Dependant Transformations

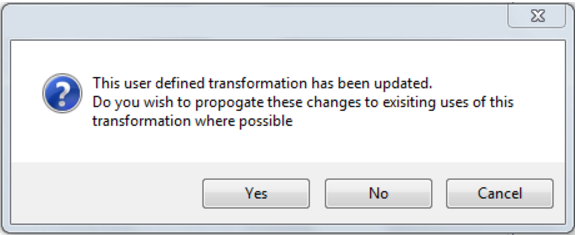

After changing a Re-usable Transformation, a dialog appears asking to confirm that changes should be applied to individual columns using the transformation, where possible:

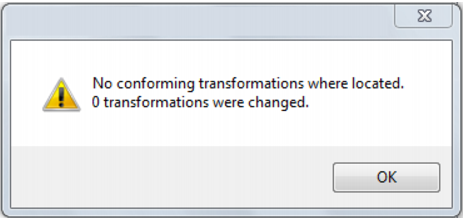

If the Re-usable Transformation doesn't have any dependant columns, then the following message is displayed:

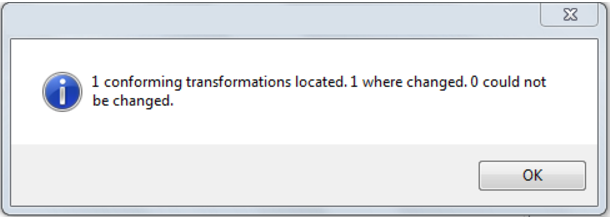

If the Re-usable Transformation has been used for dependant columns then this message is displayed:

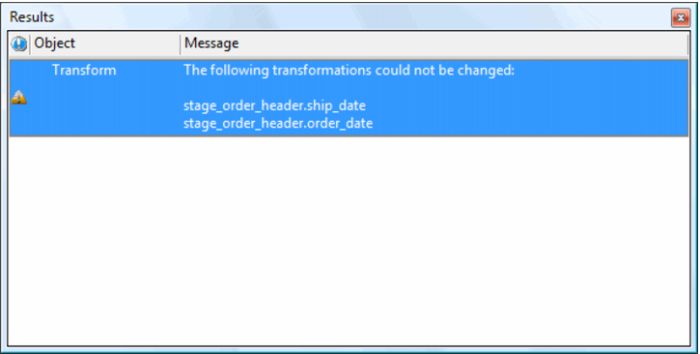

When an attempt is made to update a dependant Transformation, and the transformation has been modified in such a way as to make it impossible for the changes to the Re-usable Transformation to be applied, the error message above will include a count of the failures. The results window will detail the columns (and tables) where the update failures have occurred:
Using Re-usable Transformations
Re-usable transformations are used exactly the same way as any standard database
Function. They can be used on any object type. See
Column Transformation Properties (on page
571)
