Flat Structure File Format

The flat file structure is an alternative spreadsheet format. It is typically used for lane-based freight and accessorial charges. The flat-file structure allows for multiple origin countries in one Charge Table. You can also allow for multiple currencies in one Charge Table because different shipper countries may have rates in different currencies.

The flat-file structure allows you to effectively define cumulative charges based on different aspects of the shipment. Each charge section can be zone-based, which means there may be different surcharges based on the different origin/destination combinations. Therefore, the Charge Table contains a set of different charges that are driven by zone.

Note: To view this file, open Topic 039 - Flat Structure - Sample 001.xls, available in the QAD Document Library at QAD Transportation Management|PRECISION Reference Guides|Appendices.

This sample spreadsheet contains two sheets: the formatted PRECISION sheet for PRECISION and the original sheet received from the carrier. To upload any file to PRECISION, format it to the structure used by PRECISION.

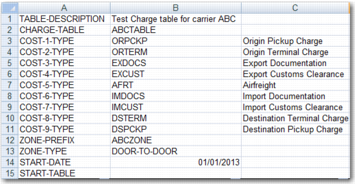

The header section defines the cost types, zone identifier, Charge Table name and start date, as displayed in Formatted Excel File. You cannot load the data without completing these sections.

Use the first column for keywords. The keywords determine the purpose of subsequent columns for that row in the header section. The possible keywords are:

This keyword identifies a particular cost type for the calculations of charges in the Rate Table section. The [number] uniquely identifies the cost type in the spreadsheet. For more details, see Flat File Structure – Rate Table Section. If you use this keyword, the second column is the cost type code defined in option CH. The third column is the description stored on the charge detail line on the Charge Table.

Example: COST-1-TYPE has a cost type of ORPCKUP in option CH and a description of Origin Pickup Charge on the charge detail line for charges generated for this cost type.

The code of the Charge Table to create in option TH. If you use this keyword, the second column is the Charge Table code for the TH record created. The code cannot be longer than 10 characters.

The start date for the Charge Table to create in option TH. If you use this keyword, the second column is the start date for the TH record created. The format of this field in the spreadsheet must be DD/MM/YYYY.

The description of the Charge Table to create in option TH. If there is no description, the description from an existing Charge Table for the same start date is used, when one already exists in the database. Otherwise, the description defaults to Flat Structure Charge Table Upload.

Determine the city field to use in the rating per zone, when city is used in the determination of the zone. There are four possible values. See the Zone Type field description in TABLESECTION for details.

Contains the identifier of the zone class records generated in PRECISION option ZC when you load a flat file format spreadsheet. When the file is loaded, the ZC records are created to store the relationship between the origin and destination, as per the Rate Table section. These ZC records are used to find the appropriate set of charges within the Charge Table. When this keyword is used, the second column is the prefix value for the ZC records created.

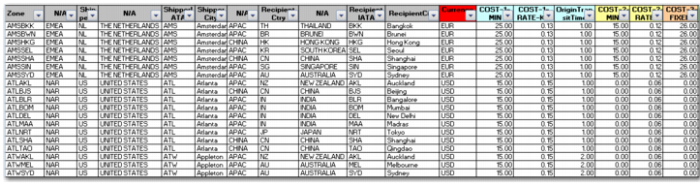

The Rate Table section defines the rates for the different cost types and the origin/destination combinations, as displayed in Rate Table Section.

The start of the rate table section is determined by the START-TABLE in the first column of a row. The START-TABLE entry is the last keyword in the header section. The rate table section begins with a row of keywords that define the purpose of each column. Each keyword determines the purpose of subsequent rows read from the spreadsheet. Ensure the data relevant to each keyword is in the correct column. For example, place the shipper country codes under the ShipperCtry keyword heading. The possible keywords are:

Any column marked as keyword N/A is skipped in the upload. You can choose to keep the data from the original carrier spreadsheet for information purposes.

Indicates the rate per distance value for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section. The value in this column is used in conjunction with the DISTANCE column.

Indicates the fixed value for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section.

Indicates the rate value for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section. You can also make this keyword more specific:

COST-[number]-RATE-[unit of measure], where [unit of measure] specifies the UOM that applies for this rate

COST-[number]-RATE-[unit of measure]-[weight break], where [unit of measure] specifies the UOM that applies for this rate and [weight break] specifies the upper limit to which this rate applies.

Example: COST-2-RATE-Kg-45 indicates that the RATE is per kg up to 45 kg for cost type 2. If there is a second column COST-2-RATE-Kg-100, it indicates that the RATE is per kg for cost type 2 up to 100 kg, where the rate kicks in above 45 kg.

Note: Volume can also be handled for the [unit of measure] for these UOM values: M3, CM3, MM3, FT3, and IN3.

COST-[number]-RATE-PACK-[pack type], where [pack type] specifies that the rate only applies to a particular pack type.

To calculate the rate per pack, regardless of pack type, the column heading is COST-[number]-RATE-PACK.

COST-[number]-RATE-CONT-[container type], where [container type] specifies that the rate only applies to a particular container type.

To calculate the rate per container, regardless of container type, the column heading is COST-[number]-RATE-CONT.

Indicates the maximum value for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section. A maximum cost only applies where a RATE is also used for the same cost type.

Indicates the minimum value for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section. A minimum cost only applies where a RATE is also used for the same cost type.

Indicates the currency for a particular cost type. The [number] indicates the cost type that applies from the COST-[number]-TYPE defined in the header section. This value takes precedence over the CURRENCY field value.

The number of units of distance between the origin and destination. It is used in conjunction with the COST-[number]-DISTANCE column for loading rates-per-distance. The upload program calculates the fixed value from origin to destination for storage in the database. Use this keyword when the carrier provides spreadsheets on a rate-per-distance basis.

The origin country of the lane for which the rates apply. When creating the ZC records, this keyword determines the Zone From. The cell data for this column must always be an ISO country code.

The origin state of the lane for which the rates apply. When creating the ZC records, this keyword determines the Zone From and it is combined with the SHIPPERCTRY data value.

The origin city of the lane for which the rates apply. When creating the ZC records, this keyword determines the Zone From and it is combined with the SHIPPERCTRY data value.

The recipient country of the lane for which the rates apply. When creating the ZC records, this keyword determines the Zone To. The cell data for this column must always be an ISO country code.

The destination city of the lane for which the rates applies. When creating the ZC records, this keyword determines the Zone To and it is combined with the RECIPIENTCTRY data value.

The From Post Code contains the starting postal code of a range of postal codes. If you have several ranges of postal codes for the same zone class, you can enter a comma-separated list of postal code starting characters. If you use a comma-separated list, you cannot use the RECIPIENTPOSTALTO for the same zone class definition line.

The unique identifier given to a particular lane. If a value is not available, the zone value is generated as a sequential number. The zone value is combined with the ZONE-PREFIX in the header section to create a unique Zone Class in option ZC.

The sample file contains rates for two origins with multiple destinations. The steps to format and upload the file are the same as for the tier-based file.

6 To begin the upload, click the green check mark (F2). When the upload has finished, a message is displayed that Charge Table ABCTABLE has been successfully loaded. Return to the TH Charge Table list.
